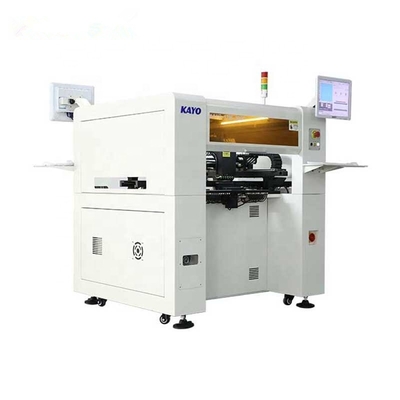

KAYO-1706-3DSG
6 Heads Automatic SMT P&P Machine
Product Dimensions:
Product Details:
1. 8pcs of cameras: 1pc of Mark, 1pc of high precision, and 6pcs of high-speed recognition cameras, synchronously recognize, effectively ensure mounting speed and precision.
2. XY drive uses imported high-precision grinding ball screw rod + imported heavy-duty linear guide, quick positioning, low noise, high precision.
3. Panasonic Servo Motor and Drive, TBI precise linear guide, Japan Vacuum generator, JUKI high-precise nozzles, automatic feeding integrated system and high-configuration IPC - High precision, strong stability, promise 24-hour mounting stably.
4. Three-section transmitting boards-automatic connection from left to right (The first section is waiting for mounting, the second section is responsible for mounting (When the PCB board finishes mounting and transmits to the third section, the first section also receives the demand to prepare a new boards simultaneously.), the third section transmits the board from p&p machine to reflow oven. Effectively save time of transmitting boards and improve efficiency.
5. The marble base increases the mechanical stability and placement accuracy, ensures that the mechanism will never deform, and improves the life of the ball screw and motor.
|
Feeder No. |
60 |
Product Weight |
600KGS |
|
Mounting Heads |
6 |
XYZ Drive Guide Rail |
TBI High-precision heavy-duty straight-line guide rail |
|
Average Power |
600W |
||
|
Positioning Accuracy |
0.01mm |
Motion Drive System |
Panasonic High speed DPS driver |
|
Nozzle Buffering Range |
5.0mm |
Operating System |
Support Windows XP, Win7 operating system |
|
Power Supply |
220V, 50Hz |
Component Angle |
0~360°, synchronized rotation in motion |
|
Compressed Air |
0.5-06Mpa |
X/Y Running Mode |
Imported TBI high-precision ball screw rod + imported TBI heavy-duty linear guide |
|
Driving Motor |
Panasonic servo motor |
||
|
Recognition Method |
Six heads recognize synchronously |
Mark Point Positioning |
Full automation |
|
Nozzle Vacuum Source |
High-speed on-off vacuum generator with vacuum damage |
Intelligent Alarm |
Automatic correction and supplement, alarm when materials shortage |
|
Max. Circuit Board Area |
650x370mm |
Board Input Method |
Three-section transmitting boards-automatic connection from left to right, automatic PCB transmission positioning |
|
XY Max. Movement Range |
700x619mm |
||
|
Z Axis Max. Movement Range |
20mm |
Visual Display |
15" industrial control display ratio 4:3, resolution 1024X768 |
|
Belt Type Feeder |
8/12/16/24mm feeders, stick feeder, tube chip |
Programming Mode |
Point-to-point programming, visual programming, PCB file coordinates inputting, etc. |
|
Max. Mounting Speed |
13000CPH |
||
|
Average Mounting Speed |
10000CPH (Visual) |
Recognition Camera No. |
1 Mark recognition camera, 6 high speed recognition camera, 1 high-precision recognition camera |
|
Dimensions |
1335x1230x1420mm |
||
|
Applicable Mounting Range: Suitable for 0402, 0603, 0805, 1206, LED lamp beads, diodes, transistors, SOT, 40mm*40mm range pin pitch ≥0.3mm QFP, BGA etc. |
|||
Program 1:
Program 2:
Program 3:
Exhibition Show
Our Customers
Certification
1. Q: Are you a trade company or a manufacturer?
We are an professional manufacturer specialized in SMT Machine, Pick and Place Machine, Reflow Oven, Screen Printer, SMT Production Line and other SMT Products. OEM & ODM service are available.
2. Q: What is your delivery date?
The delivery date is about 20 days upon the full payment.
3. Q: What is your payment terms?
100% payment before delivery
or 50% deposit in advance and the rest before shipment.
4. Q: How is the warranty?
1. Every machine will be checked carefully before shipping out. Buyers should check the package once receiving.
2. The complete machine has a warranty period of 18 months from delivery and lifetime maintenance service.
3. We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.
5. Why choose us?
KAYO is the famous brand for high-end pick and place machine. We have more than 20-year professional R&D team, providing 24 hours quick response after-sales service.
