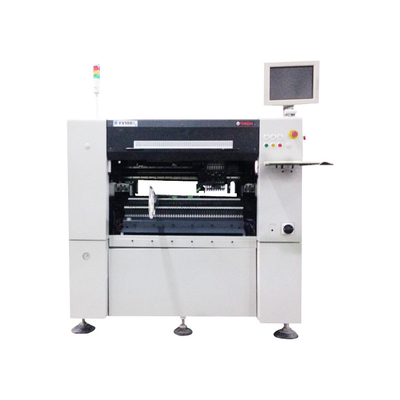

Good Condition SMT Production line YAMAHA YV100XG SMT Pick and Place Machine
Machine Features:
1. High-speed high-precision multi-function modular placement machine
2.0.18 s / CHIP ultra-high-speed placement (the best conditions) 16200CPH
3. The theoretical speed of this model 0.18s/chip, the theory of 20,000 hours per hour. The actual operating speed of about 12000-13000 per hour or so.
4.IPC9850 state, the patch speed up to 16200CPH (equivalent to 0.22s / chip)
5. Mounting accuracy: ± 0.05mm, Repeating accuracy: ± 0.03mm
6. Applicable PCB size: 457x407mm(max), 50x50mm ( min)
7. Applicable range, can put the type of 90 kinds of components, refers to 8mm feeder. From 0201 (British) micro-components to 31mmQFP large components are applicable
8. Use two high-resolution multi-vision digital cameras
9. CSP / BGA components for the whole solder ball continuous identification, including the determination of the solder ball defect
10. Can choose to fly with YAMAHA patent change the mouth, can effectively reduce the machine idle loss in general
11. In addition to the feeder can be posted outside, plate mounted; tubular; bulk can be posted (more flexible performance)
12. Universal universal type of the best choice
13. Y-axis from the left and right ends of the high-power server and high-rigidity screw drive, the newly developed fully fixed dual-drive technology to improve the acceleration and coordination through the two ends of the synchronization to drive, improve the acceleration, The positioning time.
Machine parameters:
1.Substrate size: M type: L460 * W335 (max) -L50 * W50 (min)
L type: L460 * W440 (max) -L50 * W50 (min)
2.Substrate thickness : 0.4mm-3.0mm PCB
3.Substrate delivery direction : right - left, and the direction of the plate can be changed as desired.
4.Mounting accuracy: Absolute accuracy (μ + 3σ): ± 0.05mm / chip, ± 0.05mm / QFP
5.Mounting speed: 0.18 seconds / CHIP 1.7 seconds / QFP, 1608 / CHIP: 16200CPH
6.Mounting element: 0603-31mm component, SOP / SOJ / QFP / connector / PLCC / CSP / BGA
7.Power supply: three-phase AC200V; AC380V; (0.6 square into the line can be)
8.Power: 4KVA
9.Air pressure: 0.55MPA
10.Dimensions: 1650 * 1408 * 1900mm
11.Weight: 1600KG
