0402 multi component smt led bulb four machine and panel assembly pick and place machine RT-1

1 Piece
MOQ
$35,000.00(1 - 4 Pieces) $23,000.00(>=5 Pieces)
Price
0402 multi component smt led bulb four machine and panel assembly pick and place machine RT-1
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Weight (KG): 2000
Showroom Location: Egypt, Turkey, India
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: PLC
Model Number: RT-1
Warranty: 1 Year
Product Name: Place Machine\ LED Mounter\LED Assembly Machine
Dimension: 1200*1930*1500mm
PCB Length Width: Max: 450*350mm(Non-omnidirectional 610*350) Min:80*80
PCB Thickness: 0.1-6mm(if<0.6mm Need Jig)
No.of Camera: 2PCS
Mounting Precision: ±0.04mm
Mounting Speed: 40000CPH
No Of Feeder Station: 32PCS
No Of Head: 10PCS
After Warranty Service: Spare Parts
Basic Infomation
Model Number: RT-1
Payment & Shipping Terms
Packaging Details: Standard hard Wooden Box Packing/ Custom Packing
Supply Ability: 30 Piece/Pieces per Month
Product Description
Product Description




Cable/Tanks chain



*Wrap the thread to ensure the translation of the thread.
* Reduce wear and extend life
High-end magnetic linear motor :
The mover generates a magnetic field through the external connection of electricity, and the stator is a permanent magnet vThe interaction between the mover and the stator makes the placement head reciprocate through the interaction between the magnetic stages

No. Of Camera: 2 PCS
One camera is Mark camera: Make PCB board placement procedures based on scanning mark points One camera: Check whether the suction nozzle sucks the material and whether the position of the material is correct
Specification

Item:Automatic multifunctional pick and place machine

Feature: 1.Magnetic linear motor multifunctional pick and place machine. 2.Mounting components: LED chip, capacitors, resistors, IC, shaped components, etc. Exclusive patented technology: 1.Electronic feeder feeding system 2.Vision alignment flight identification, Mark correction. 3.Auto-optimization after coordinates generated, etc.
Model
RT-1
Dimension(mm)
1200*1930*1500
Total weight(kg)
2000
PCB length width(mm)
MAX:450*350 (Non-omnidirectional 610*350)
MIN:80*80
PCB Thickness
0.1-6mm (if<0.6mm, need jig)
Mounting precision
±0.04mm
Mounting height
Standard:≤15mm (Height customizable)
Components
LED chip, capacitors, resistor, shaped components, etc.
No.of feeders station
32PCS
No. of head
10PCS
Transmission speed
≤1000mm/sec

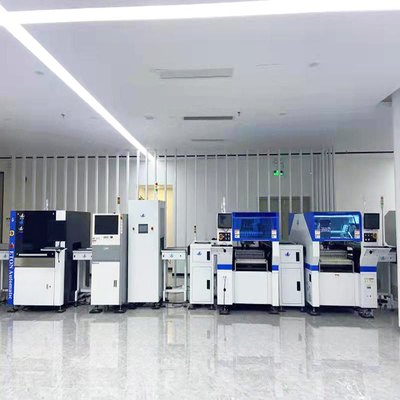

SMT line solution

ETON over 10 years experience in SMT machines, so we are very professional to provide whole line solution.
Automatic stencil printer machine with pick and place machine, loader, conveyor, unloader, reflow oven to be one automatic line.
Automatic line save much labor cost compared with the semiautomatic line, also with higher printing precision could produce high quality electrical products. Here are the automatic SMT line solution layout:

Related SMT Machine

Company Profile
Shenzhen ETON Automation Equipment Co.,Ltd.
Was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment.,

* Experience:It has more thanten years of research and development experience and LED industry service experience.
* Industrial park:With an industrial park of50,000 square meters, focusing on the R&D and production of the SMT industry.
* Large market: South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil more than 20 countries.

The hall of office building in Jiangxi

The hall of office building in Shenzhen

Office

Show room

Experienced PD team

Excellent R&D team

Strict machine testing

Spacious workshop

Packing & Delivery
All machines are packed with vacuum and wooden packing like the one in the pictures.
Step 1. Film packaging
Prevent the machine from dust ,water,crash and shaking
Step 2. Add foam+film packaging
Double safe protection,Prevent the machine from crash and shaking
Step 3. Unique tin foil packaging
Add tin foil packing can prevent the film from scratch broken.
Step 4. customized Strong wood carton packing
The customized strong wood packing for ocean ship,The machines are fix oiin the wood carton, effectively prevent collision and shock.
For spare parts usually we’ll pack it separately with box.

This is the packing reference for the feeders
and some spare parts .
After sales sevice
FAQ
Q1: What is your machine actual speed? A1: The actual speed is influenced by many factors, such as the number of the components, the kind of products, the time of send board, etc. So we can’t give you the accurate actual production capacity. Such as for RT-1, the speed of led chip mainly around 23000-25000CPH. But for driver will be different. Q2: Does the price include spare parts(nozzle and feeder)? A2: Different client has different requirements on spare parts, it is not fair to clients to add in equivalent price for spare parts, so we don’t add the spare parts on price. And price is only for machine. Q3: Can you support whole SMT line? A3: Yes, we can provide whole line solution if you want. We are very professional on SMT field. Q4: What is your machines quality? A4: We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machine quality. Q5: What is your delivery date? A5:The delivery date is about 20 days upon the full payment. Q6:The products you are advertising are in stock? A6: The delivery date is about 20 days upon the full payment.Some times we have some in stock for ship , before shipping we’ll do some machine test for clients . Q7:How many hours does the machine can operated per day? A7:Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
Q8:How can I buy this machine from you? A8: A. Consult us about this product on line or by e-mail B. Negotiate and confirm the final price , shipping , payment methods and other terms. C. Send you the proforma invoice and confirm your order. D. Make the payment according to the method put on proforma invoice. E. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping. F.Send your order by air or by sea.
Application
