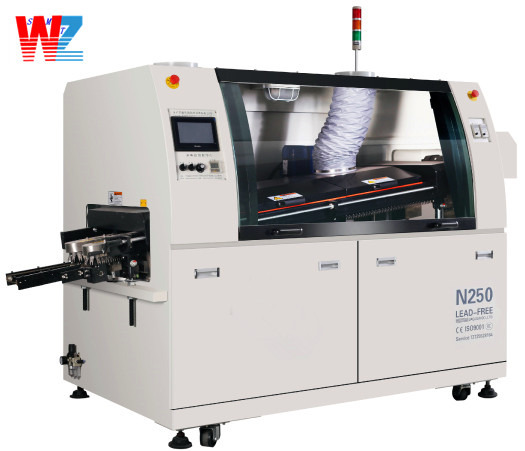

Best price/used/second hand SMT wave soldering machine
Name: SMT wave soldering machine
Brand:Any brand
Model: wave soldering machine
Specification: wave soldering machine
Condition:original
Quality:top qualiy
Stock:large
Payment:L/C T/T D/P Western Union Paypal Money Gram And Others
Shipment:In three days
Warranty: 1 year
Delivery:fedex,ups,dhl,as required
Package:carton box with foam protect
1. Automatic conveying power system and auto synchronous board feeding functions.
frequency conversing speed adjustment
Solder Pot peak uses frequency conversing speed adjustment which can independently control the wave height.
Fluxer system using transverse Japanese spray nozzle, driven by pneumatic cylinder and PLC control, accurate and reliable.
PLC is used to control the machine, to ensure the reliability and stability of the system.
Pre-heaters using Infrared heating element, heat radiated efficiently to the circuit board with fast ramp up and fully activating liquid flux.
Special alloy solder fingers, strengthened double v-groove.
Solder-motor adopts imported high frequency conversion motor with independent control, stable performance and long lifetime.
Pre-heater passage with modularized design, meet with environmental protection requirement, safety and convenient to cleanup.
Preheaters uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.
Timer startup feature for solder pot, solder melted within 90 minutes.
Automatic finger cleaner ensure the cleanliness of solder fingers.
Intelligent monitoring and alarm system ensure the stable performance and operators’ safety.
|
Model No. |
Flason N350 |
|
Number of pre-heaters |
3 |
|
Pre-heater passage |
1600mm |
|
Body size |
3300(L)*1400(W)*1560(H) |
|
Outside dimension |
4100(L)*1400(W)*1560(H) |
|
Weight |
1100KG |
|
Total/steady consumption |
24KW/6-8KW |
|
Air supply |
0.5MPa |
|
Preheating style |
Hot air |
|
Preheater consumption |
220V 8KW |
|
Control method |
PC +PLC |
|
Range of temp. set-point |
Room temperature---300ºC |
|
Preheating time |
About 10-15mins for setting 150ºC |
|
Solder application |
Lead-free |
|
Solder pot capacity |
320KG |
|
Solder pot temperature |
300ºC |
|
Solder pot consumption |
380V 12KW |
|
Solder temp. control method |
PID&SSR |
|
Wave motor consumption |
1KW 220V |
|
Solder melting |
About 120mins for setting 250ºC |
|
PCB width |
50-350mm |
|
Conveyor speed |
300-2000mm/min |
|
Conveyor direction |
L to R (R to L optional) |
|
Conveyor inclination |
4-7 º |
|
Flux pressure/capacity |
3-5 bar/6.5L |
