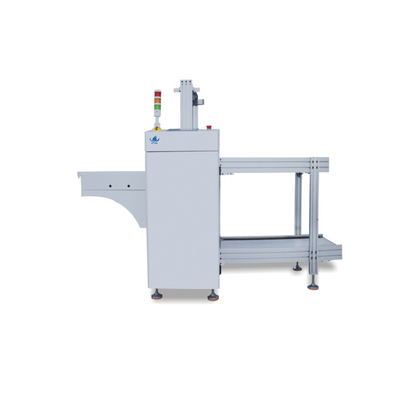

ETON new product full automatic unloader pcb mgazine loader unloade Smt pcb unload machine optional

1 Piece
MOQ
$7,500.00(1 - 9 Pieces) $3,500.00(>=10 Pieces)
Price
ETON new product full automatic unloader pcb mgazine loader unloade Smt pcb unload machine optional
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Weight (KG): 270
Showroom Location: Egypt, Turkey, India
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: PLC
Model Number: UD250/UD330/UD390/UD460
Warranty: 1 Year
Product Name: Automatic Unloader Machine\LED Assembly Machine
Send Board Time (s): Around 6
Frame Change Time(s): Around 25
PCB Size: Optional
System: PLC
PCB Size(L*W) (mm): Optional
PCB Thickness(mm): 0.4-3.0
Transmission Height: 900±40
Power Consumption: Single-phase AC110-220V(optional) ,maximum 300 VA
Step Pitches Selection: 1-4( 10mm Step Pitches)
Basic Infomation
Model Number: UD250/UD330/UD390/UD460
Payment & Shipping Terms
Packaging Details: Standard hard Wooden Box Packing/ Custom Packing
Supply Ability: 30 Piece/Pieces per Month
Product Description
Product Description
Application
Specification

Item: Fully automatic unloader machine

Feature: 1.The device of unloading PCB in the SMT production line. 2.PLC control, color man-machine interface operation. 3.Adopting the structure of the stepping motor to push the board, the force and speed of the pushing board can be adjusted. 4.Auxiliary positioning brake system,accurate positioning, fast rising and falling speed, high production efficiency; 5.Multiple electrical distribution circuit protection,safe and reliable; 6.Acousto-optic alarm system,abnormal information text prompt, easy operation and maintenance; 7.Standard SMEMA signal communication mode.
Description
This equipment is used for the lowering operation of the circuit board in the production line
Number of turnover frame
One box on working, two boxes out of frame segment, two boxes into the frame segment(or customer specified)
Send board time
Around 6s
Frame change time
Around 25s
PCB Thickness
0.4-3.0mm
Step pithes selection
1-4(10mm step pitches)
Transmission height
900±20mm
Transmission direction
Left-Right, Right-Left
Power consumption
Single-phase AC110-220V(optional),maximum300VA
Air pressure and air flow
4-6Bar,Up to 1L/min
SMT line solution

ETON over 10 years experience in SMT machines, so we are very professional to provide whole line solution.
Automatic stencil printer machine with pick and place machine, loader, conveyor, unloader, reflow oven to be one automatic line.
Automatic line save much labor cost compared with the semiautomatic line, also with higher printing precision could produce high quality electrical products. Here are the automatic SMT line solution layout:

Related SMT Machine

Company Profile
Shenzhen ETON Automation Equipment Co.,Ltd.
Was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment.,

* Experience:It has more thanten years of research and development experience and LED industry service experience.
* Industrial park:With an industrial park of50,000 square meters, focusing on the R&D and production of the SMT industry.
* Large market: South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil more than 20 countries.

The hall of office building in Jiangxi

The hall of office building in Shenzhen

Office

Show room

Experienced PD team

Excellent R&D team

Strict machine testing

Spacious workshop

Packing & Delivery
After sales sevice
FAQ
Do you inspect the finished products? Yes, each step of production and finished products will be came out inspection by QC department before shipping. Do you have oversea after sale service? We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support. In addition, we have India office, Turkey office, Egypt office, etc. What is your delivery date? The delivery date is about 20 days upon the full payment. What is your payment terms? 100% payment before delivery or 50% deposit in advance and the rest before shipment. How is the warranty? 1. Every machine will be checked carefully before shipping out. Buyers should check the package once receiving. 2. The complete machine has a warranty period of 12 months from delivery and lifetime maintenance service. 3. We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.
