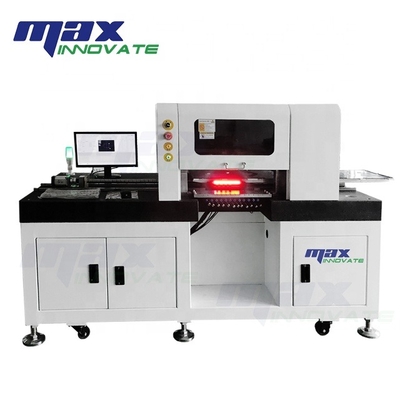

New PCB Chip Mounter SMT LED Pick&Place Machine for Electronic Products M-06

1.0 Units
MOQ
New PCB Chip Mounter SMT LED Pick&Place Machine for Electronic Products M-06
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Not Available
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: Motor
Model Number: M-06
Warranty: 1 Year
Maximum PCB Area: 1200*385mm
Maximum Moving Range: X Axis 1200mm, Y Axis 390mm
Mounting Head: 6 Heads
Typical Placement Speed: 0-35000CPH
Belt Type Feeder: 8mm, 12mm, 16mm, And 24mm Feeder
Operating System: WINDOWS 7
Compressed Air: 0.55MPA
Dimension: 2000MM(L)*1200MM(W)*1450MM(H)
Weight: 1000KGS
Power Supply: 2.0KW
After Warranty Service: Video Technical Support, Online Support
Local Service Location: None
After-sales Service Provided: Video Technical Support, Online Support
Basic Infomation
Model Number: M-06
Payment & Shipping Terms
Packaging Details: Plywood Case for export!
Supply Ability: 10 Unit/Units per Month
Product Description
Product Overview
Description:
The Semi-Auto Pick And Place Machine is for mounting smd componnets on the PCB/LED Board. (Mounting angle range 0-360° and the precision is 0.1°)

Features:
1.Mount 0603 to 7272 can meet all specifications of SMD LED components. In addition to all the planar LED plane, other electronic components (such as resistors, capacitors) and high power LED and the lens can be produced;
2.Precise positioning: positioning block is the most convenient way to position the substrate, the origin of counterpoint,accurate positioning (accuracy less than 0.05mm). Each suction nozzle is independent of angle, and six element recognition cameras, in addition to LED lamp can mount the traditional., bulb lamp, lamp, lamp, ceiling lamp, guardrail tube, LED drive power, copper lamp series and so on can be freely mounted;
3.High precision: X, Y, W axis are equipped with precision ball screw and guide rail, enhance the smooth coordination of equipment movement, reduce abnormal noise, greatly improve the accuracy and speed of the patch
4.SMT specifications: platform 1200×380mm, applicable to the current market of 99% LED products;PCB board can be affixed to various shapes, without clamps;
5.The visual system, visual programming software online programming, which is of high precision digital camera camera, there is no need to manually input elements and positioning coordinates; using visual camera automatic identification, to ensure the accuracy of mount;
Maximum PCB area
1200×380mm
Maximum moving range
X axis1200 mm, Y axis 390 mm
Mounting head
6 Heads
Z axis Maximum moving range
12 mm
Typical placement speed
35000CPH
Movement precision
±0.05mm
Positioning method
MARK point camera + flying camera
Programming method
Automatic Visual camera Positioning programming
Number of feeders station
14pcs of feeder stations for 8mm feeder or 7pcs feeder stations for 12mm feeders.
Operating system
WINDOWS 7
Compressed air
0.55MPA
Power supply
2.0KW
Weight
1000KGS
Dimension
2000MM(L)*1200MM(W)*1450MM(H)
Products Description
Related Products
All kinds SMT&DIP Machine,welcome inquiry and discuss with us!
Packing&Shipping
Packing Details :Plywood case, for export!
Port:Shenzhen
Delivery Details :7-10days
Max Machine from the production to packaging to transportation, have strict quality control, use high-quality materials, make the best products, so that every customer satisfaction.
Accept various modes of transportation, fast delivery time!
