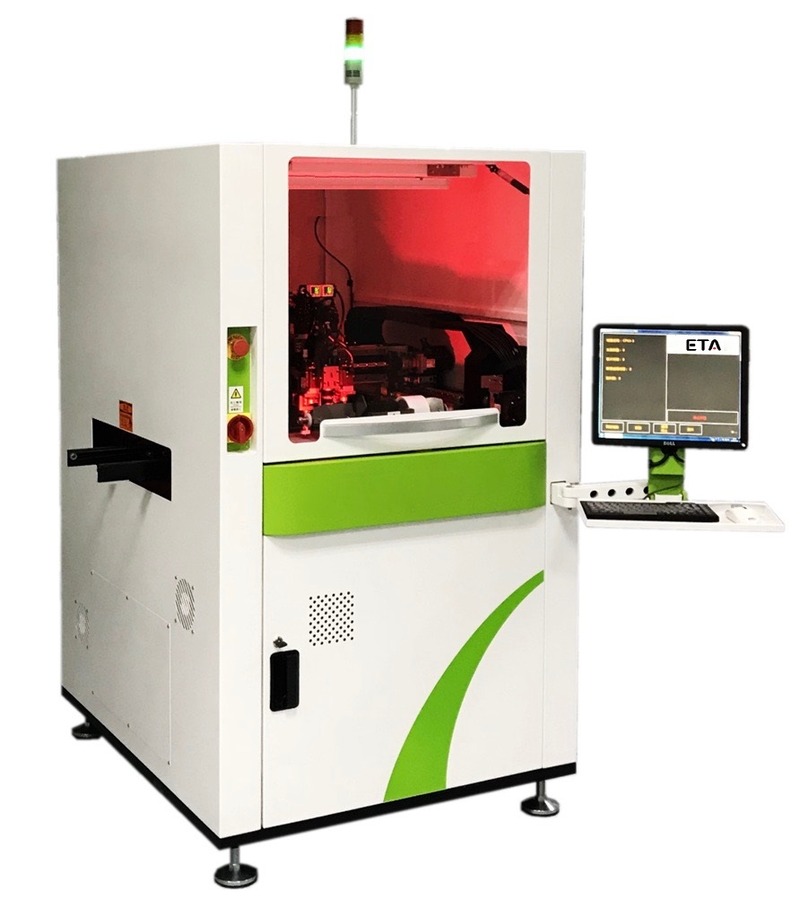

SMT Label Driver for Auto Label Mounter 4*4 | 50*50mm

1.0 Pieces
MOQ
SMT Label Driver for Auto Label Mounter 4*4 | 50*50mm
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Spain, Thailand, Argentina, Chile
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: PLC, Motor
Model Number: ETA-510
Warranty: 1 Year
Model NO.: ETA-510
Label Size: 4*4 ~ 50*50mm
Labeling Angle: 360
Nozzle: 2
Position System: CCD
Conveyor Speed: 0 ~ 100000mm/Min
Transport Package: In Wooden Case
Labeling Precision: +-0.05mm
PCB Size: L450 * W320mm; Thickness 0.5mm-6mm
Operation Mode: X,Y,Z,R Movement
After Warranty Service: Video Technical Support, No Service, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Spain, Thailand, Malaysia, Australia
After-sales Service Provided: Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
Basic Infomation
Model Number: ETA-510, ETA-510
Payment & Shipping Terms
Packaging Details: VACUUM WOODEN CASE
Supply Ability: 100 Piece/Pieces per Month
Product Description
ETA Automatic SMT In-line Offline SMD Label Mounter
Products Description

This unit is used to mount Various barcodes label (1D, 2D, labels with different background paper colors),Various film
products (translucent, opaque, different colors, different thicknesses). Applicable:
HANWHA(SAMSUNG):SM321,421,431,471,481,482,481plus,482plus,EXCEN,etc.
JUKI:KE2050,KE2060,KE2070,KE2080,KE3010,KE3020,etc.
YAMAHA:YV,YG,YS series,etc.
FUJI:NXT,XPF series,etc.
PANASNOIC:CM,NPM,etc.
Introduce:
Features:
1. R&D, design and manufacturing in Taiwan
2. ln-line/Off-Line mode.
3. The X,Z,R axis adopts servo module with high precision and high speed.
4. It can realize the adsorbing and mounting of printed roll-up labels.
5. Configuring printer can realize the function of print-and-paste.
6. Configure a reader to read validation or upload barcode information.
7. The Z-axis can be adapted to label PCBA at different heights.
8. Standard 2 groups of mounting head, can adsorb 2 labels at the same time.
9. Each group of mounting heads is equipped with independent vacuum detection to prevent leakage and falling of the mark.
10. Online database system to upload and feedback barcode information.
11.360 ° servo rotation, control mounting.
12.600dpi latest zebra industrial grade printer.
13.5 million industrial cameras, with three-color light source, to deal with various labels.
14.Interconnection with MES system to provide production statistics related information.
Materials List：
Speed
3500Pcs/H
Label Size
3*3 ~ 50*50mm
Labeling Precision
±0.05mm
Labeling Angle
360°
Labeling Heigh
0.6-7.0mm
Nozzle
2
Nozzle Vacuum Mode
Vacuum pump
PCB Size
L50*W80mm ~L450 * W350mm; Thickness 0.5mm-6mm
Top Surface Height of PCB
<25mm
Bottom Surface Height of PCB
<25mm
Position System
5M CCD
Operation Mode
X,Y,Z,R movement(Servo Motor)
Conveyor Speed
0 ~ 1000mm/min
Power
AC220V/50Hz, Total power: 1kva
Air Pressure
0.5~0.6Mpa
Body Size
L1000 *W1200 *H1500 mm
Weight
1250Kg
Company Profile
Shenzhen ETA Technology Co., Ltd.Expert in making customized high quality SMT LED Pick and Place Machine,
SMT LED Reflow Oven, SMT LED Stencil Printer, SMT Production Line,LED Assembly Line, SMT LED Machines with more than 23 years experience!

Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.

Successful Experience:
Eta's customer in 35 countries around the world.
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 500 experts and technician for customers.
3. Became the most reliable Chinese partner for you.

For SMT factory setup,we can do for you:
1. We provide fulL SMT solution for you.
2. We provide core technology with our equipments.
3. We provide the most professional tech service.
4. We have wealthy experience on SMT factory setup.
5. We can solve any question about SMT.
