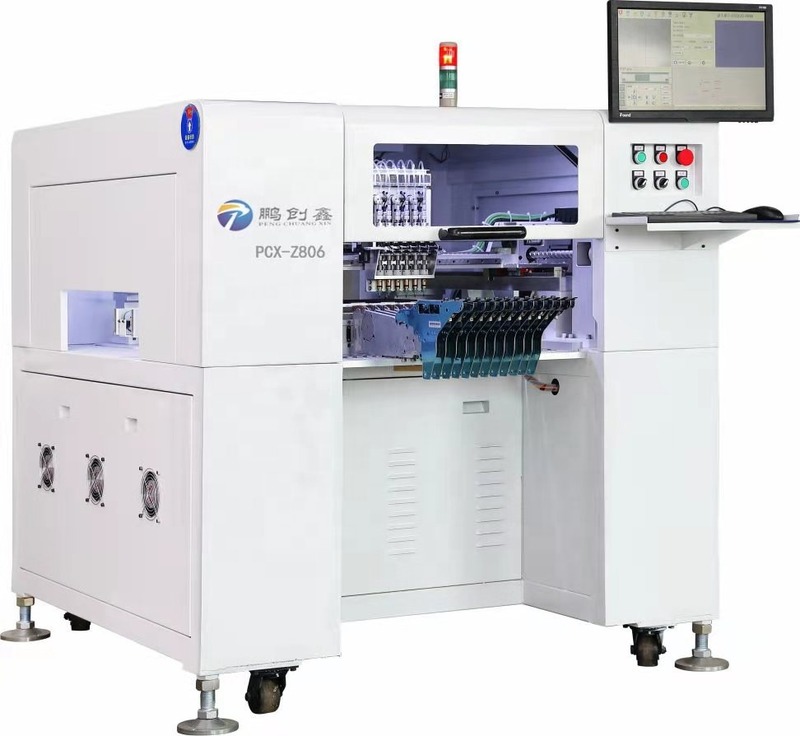

High Speed ​​6 Heads Automatic SMT Pick And Place Machine 500*300*20

1 Set
MOQ
$22,000.00(1 - 1 Sets) $21,200.00(2 - 2 Sets) $20,360.00(>=3 Sets)
Price
High Speed ​​6 Heads Automatic SMT Pick And Place Machine 500*300*20
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Weight (KG): 70
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2021
Warranty Of Core Components: 2 Years
Core Components: PLC
Model Number: PCX-Z806
Warranty: 1 Year
Name: High Speed 6 Heads Automatic SMT Pick And Place Machine
Max PCB Size: 500*300*20
Max Moving Range Of Z Axis: 20 Mm
Max Pick And Place Speed: 25000CPH
Stable Pick And Place Speed: 15000-18000CPH
Pick And Place Accuracy: 0.01mm
Buffering Range Of SMT Nozzle: 4.0
After-sales Service Provided: Online Support
Basic Infomation
Model Number: PCX-Z806
Payment & Shipping Terms
Packaging Details: Wooden box
Supply Ability: 30 Set/Sets per Month
Product Description
Product Description
Product Introduction
PCX-Z806 is a high accuracy , multi-function , on line automatic pick and place machine ,the machine use six mounting heads ,equipped with high-precision components recognition system ,on line production , don't need manual load and unload PCB board .PCX independent research and development the machine operation system with Chinese and English both,simple and convenient use ,can be widely used in all kinds of LED lamp ,LED drivers ,small appliances ,circuit boards ,digital products ,all kinds of control panels , and so on.

Advantage

1.All the material of X axis ,Y axis and material feed platform are made by overseas CNC brushed aluminum which has improved the running accuracy and feeding speed.
2.Two kinds of visual location system , one is Mark locating visual system in the upside another one is importing camera components location adjust recognition system in the downside ,which can insure the accuracy of SMT .
3.The Z axis was powered by 6 overseas servomotors and made by CNC brushed aluminum rod which insured the high-speed material feed.
4.Powerful function :with different material feeder ,it can finish different SMT for LED product.
5.Easy operation system:it is easy to maintain with its simple operation system .The maintenance cost is very low.
6.The software ,PCB board and other components are developed by PCX ,with independent intellectual property rights.
Specification
Name
High speed 6 heads Automatic SMT Pick and Place Machine
Max PCB size
500*300*20
Max moving range of Z axis
20 mm
Max pick and place speed
25000CPH
Stable pick and place speed
15000-18000CPH
Pick and place accuracy
0.01mm
Buffering range of SMT nozzle
4.0
Power supply
220v,50HZ
Air pressure
0.65-0.75 Mpa
Average power
800w
Packing & Delivery
Wooden box
