Stock to UE SMT380-X with integrated PC SMT machine 4 pick and place heads and 38 feeders 10*10 mm

1 Set
MOQ
$5,000.00(1 - 1 Sets) $4,950.00(>=2 Sets)
Price
Stock to UE SMT380-X with integrated PC SMT machine 4 pick and place heads and 38 feeders 10*10 mm
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Weight (KG): 123
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Motor
Model Number: SMT380-X
Warranty: 1 Year
Mounting Numbers: 4 PCS
Mounting Precision: 0.025 Mm
Mounting Angle: 0~360°
Theoretical Speed: 7500 PCS/h
PCB Minimum Size: 10*10 Mm
PCB Maximum Size: 350*450 Mm
PCB Thickness: ≤2mm
Numbers Of Visual: 6PCS(parts Camera, PCB Camera, High Speed Identification*4)
After Warranty Service: Online Support
After-sales Service Provided: Online Support
Basic Infomation
Model Number: SMT380-X
Payment & Shipping Terms
Packaging Details: With strong wooden packing
Product Description

Introduction

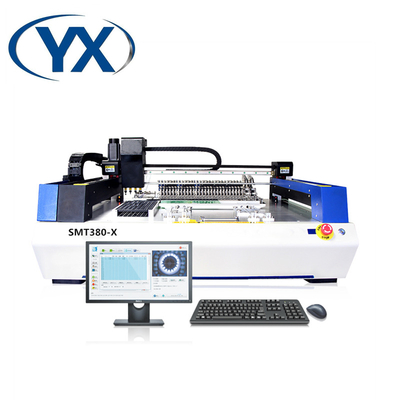

Automatic Vision Pick and Place Machine PC monitor, 19 inch Dell display. It is with Multi-group industrial CCD camera solution, identification and correction system, 4 head pick and place at the same time.For the transmission structure,machine with HIWIN linear guider,Japanese belt, can acheive long-term high precision and stable mounting. Maximum support 38 pcs of 8mm YAMAHA CL feeder stations.Also CSV,TXT coordingate file can be adopted.The maximum PCB size. allowed: 350*450mm, normally it is used for normal resistance, capacitance LED,chips,I ,BGA,etc.Mainly used for small production and prototyping business, with self-designed operating system for developers.
The machine SMT380-X with the 4heads+HIWIN guide rail+38pcs feeder.

Feature

1. Step servo motor. 2. Collocate Taiwan HIWIN linear guider 3.Double Mark possess recognizing and positioning. 4.High resolution ratio CCD Industrial camera +4 small camera for high precision recoginse. 5. Intelligent P&P heads, Automatic dispose picking fail 360-degree orientation. 6. Support arbitrary IC try, Convenience/Reasonable/Arbitraty set. 7.The up and down looking vision system.(automatic identify mark/automatic identify the centre of components). 8.The humanization control panel, care of every steps of your operation. 9. Humanization PC Software, could support most of PCB design software software.

Part List

1 Mounter Host SMT380-X 1 Set 2 Display Dell Dell 18.5＂ 1 Set 3 Display VGA Cable 1.5m 1 PC 4 Keyboard and Mouse Set 1 PC 5 Nozzle 502×1、503×2、504×2、505×1、506×1 1 PC 6 Nozzle Correction Substrate Stainless Steel Substrate 1 PC 7 Magnet Round 4 PCS 8 Check the Nozzle Solid Corrected Nozzle 4 PCS 9 Inkpad Red 1 PC 10 Power Cord 3×1.5 ㎡ 1 PC 11 Toolbox 12.5＂ 1 PC 12 Grease Kunlun No.2 White Bottle 1PC 13 Allen Key 8 Piece Suit 1 PC 14 Brush 1.5＂ 1 PC 15 Stainless Steel Tweezers VETUS-Anti-Static Precision Stainless Steel Tweezers 1 PC 16 Sealing Ring φ10×φ6×2.5 5 PCS 17 0 Type Circle φ5×1 10 PCS 18 Certificate of Inspection 1 PC 19 Operation Manual 1 PC

Main parameter

System
Project
Content







Mounting System
Mounting Numbers
4 PCS
Mounting Precision
0.025 mm
Mounding Angle
0～360°
Theoretical Speed
7500 PCS/h
Normal Mounting
6000 PCS/h
Visual Mounting
5000 PCS/h
Suction Nozzle Type
Juki Series Nozzle


Applicable Element
RC (0402, 0603, 0805, 1206 etc）
LED Lamp Beads (0603, 0805, 3014, 5050 etc）
Chip (SOT, SOP, QFN, BGA etc）


PCB
PCB Minimum Size
10×10 mm
PCB Maximum Size
350×450 mm
PCB Thickness
≤2 mm




Feeder Tank
Type
YAMAHA CL Materials Feeder





Feeder
Feeder
8mm 12mm 16mm 24mm 32mm
Numbers
38 level
Tubular Materials Feeder
YAMAHA YV materials feeder
IC Tray
Postposition 1 PC Tray

X/Y/Z Axis
X/Y Axis Moving Range
655×575 mm
Z Axis Moving Range
12 mm


Visual System
A Visual Camera
CCD High-Definition Camera



X, Y, Z axis
Numbers of Visual
6PCS(parts camera, PCB camera, High Speed Identification*4)
Recognition Capability
MAX.22*22mm


Control System
PC System
MicrosoftWIN7
Operational Software
Researching and Development Independently


Visual System
Compatible File Format
CSV、TXT.format
Program Method
Support online and offline ways





Basic Parameter
Air Pressure
0.8 Mpa




Control system
Vacuum Mode
Vacuum Generator
Air Pressure
-80 kpa
Power
500W
Power Supply
AC220V±10％ 50Hz
Outline Size
L 1185× W 840 × H 560 mm





Basic parameter
Net Weight
123kg

Our Services

1.Video technical support
2.24-hour online support
3.Goods tracking support
4.Free broken parts（Within 1 YEAR warranty ）

FAQ

Q:How is the training?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.

Q:Is it hard to use these machines?
A:No,not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.

Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.

Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.

Q:English version for these machines?
A:Yes
