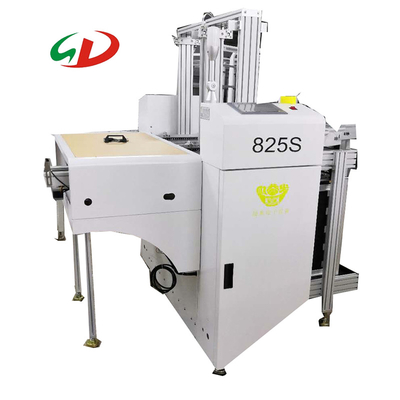

Features::
1.Outer structure: sheet metal structure and aluminum profile into the frame, surface spray treatment, the color is corrugated white.
2. Microcomputer Panasonic PLC control system, stable and reliable.
3.The touch screen display operation has automatic fault diagnosis function, and the man-machine dialogue is convenient.
4. Multiple sound and light and alarm function in the touch screen.
5. The rack lifting step can be set according to the thickness of the PCB.
6. With automatic counting function, it is convenient for production statistics.
7.User-friendly design ensures that PCB boards are not broken and improve output capacity
8.The lower connection PCB board adopts the motor to send the board to the material frame.
9.Stepper motor push plate, the force can be adjusted, the speed can be set on the touch screen
10.Push plate device uses two head limit to protect PCB board
11. The OK board is loaded into the front frame, and the NG board is transferred into the fabric frame.
12.Double line number distinguishes NGOK
|
Scope of application |
||||||
|
No. |
Scope of application |
|||||
|
|
Name |
825NG |
833NG |
839NG |
||
|
1 |
Applicable frame size |
355*320*563mm |
460*400*563mm |
535*460*563mm |
||
|
2 |
PCB board size (MM) |
350*(50-250) |
450*(50-330) |
530*(50-390) |
||
|
3 |
Dimensions L*W*H(MM) |
1600*1450*1250 |
1900*1600*1250 |
2100*1750*1250 |
||
|
4 |
Body weight |
320KG |
380KG |
420KG |
||
|
5 |
Applicable frame size |
200W |
250W |
300W |
||
|
6 |
Power supply |
Single phase 220V |
||||
|
7 |
PCBboard thick |
0.6-3.0mm |
||||
|
8 |
Lifting step |
10,20,30,40,(mm)Arbitrarily set |
||||
|
9 |
Compressed air |
5-6KG |
||||
|
10 |
Fixed edge |
Front fixed (can be customized and fixed) |
||||
|
11 |
Transfer direction |
Left to right (can be customized right to left) |
||||
|
12 |
Transfer height |
900±20mm |
||||
|
13 |
Step selection |
1~5 steps (10mmstep) |
||||
|
14 |
Use environment |
Non-corrosive gas and dust environment |
||||
|
15 |
Anti-interference |
Voltage noise: 1000Vp-p, wave width 1us, 1 minute
|
||||
|
16 |
Transfer connection push PCB board |
Stepper motor (42*48) |
Stepper motor (57*70) |
Stepper motor (57*70) |
||
|
17 |
Transfer motor |
Using 86 high precision stepper motor |
||||
|
18 |
Translational transmission |
Imported wire belt timing belt |
||||
|
19 |
NG line number |
Automatically move to the NG storage box (the storage bin can automatically enter and exit) |
||||
|
20 |
OK line number |
Automatically enter the OK box through the translation stage |
||||
