Low cost SMT production Line/PCB assembly line transfer machine neoden9 low cost, with orientation productive machine

1 Set
MOQ
$13,999.00(>=1 Sets)
Price
Low cost SMT production Line/PCB assembly line transfer machine neoden9 low cost, with orientation productive machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Weight (KG): 500
Showroom Location: Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Brazil, India, Russia, Spain, Argentina, Chile, Colombia, South Africa, Ukraine, Australia
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2021
Warranty Of Core Components: 2 Years
Core Components: Engine, Bearing, Motor, Gear, Pump
Model Number: NeoDen9
Warranty: 2 Years
Nozzle Qty: 6 Nozzles
Reel Tape Feeder Qty(Max): 53 (Electric / Pneumatic)
Max Placement Speed: 14,000CPH
Max PCB Size: 460*300mm
Smallest Component Size: 0201(Electric Feeder Available)
Max Component Height: 16mm
Placement Accuracy: 0.01mm
Item: Low Cost Pick And Place Machine Neoden9
Application: SMT Production Line/PCB Assembly Line
Basic Infomation
Model Number: NeoDen9
Payment & Shipping Terms
Packaging Details: Fumigation free wooden case Low cost pick and place machine neoden9, with productive orientation machine
Supply Ability: 200 Set/Sets per Month 6 heads high speed full automatic SMT pick and place machine
Product Description
Low cost pick and place machine neoden9, with productive orientation machine
Product Description

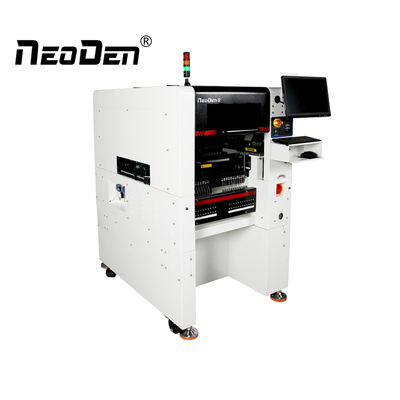

NeoDen9 is a ball screw pick and place machine with 6 simultaneous pick-up heads, max 53 tape reel feeder capacity, max 14000CPH placement rate, which is suitable for scale pcb assembly production with fast speed and high accuracy. The width of the machine is 80cm, which can enter most doors.
smt pick and place machine price smt machine small pick and place machine smt equipment pick place machine
It supports both electric feeder and pneumatic feeder.
The cost of electric feeder is higher, but for 0201 component, you need to select electric feeder.
The cost of pneumatic feeder is lower, you can select it for normal assembly work.
The feeder size: 8mm/ 12mm/ 16mm/ 24mm/ 32mm/ 44mm/ 56mm.
pick and place machine for sale pick and place smt machine pcb pick and place machine smt placement machine
Applicable components: 0201, 0402, 0603, 0805, 1206, 1210, SOP, SSOP, SOC, QFP, QFN, BGA, 3538, 4148 diode, 3535 ball shape LED, 5050 etc.
pick and place machine smt automatic pick and place machine pick and place robot project pick machine pnp machine
Application industry: household appliances industry, auto electronics industry, power industry, LED industry, security,
instruments and meters industry, communication industry, intelligent control industry, internet industry of things and military industry, etc.
used smt pick and place machine smt pick and place equipment pick and place tool pick and place robotic arm
Highlights


Specification
Model
NeoDen9
Nozzle Qty
6 nozzles
Reel Tape Feeder Qty(Max)
53 (Electric / Pneumatic)
IC Tray Feeder Qty
20
Placement Area
460*300mm
MAX Mounting Height
16mm
PCB Fiducial Recognition
High Precision Mark Camera
Component Recognition
High Resolution Flying Vision Camera System
XY Motion Feedback Control
Closed loop control system
Repeat Position Accuracy
±0.01mm
Maximum Mounting Speed
14000CPH
Average Mounting Speed
9000CPH
X-axis-Drive Type
WON Linear Guide / TBI Grinding Screw C5 - 1632
Y-axis-Drive Type
WON Linear Guide / TBI Grinding Screw C5 - 1632
Compressed Air
>0.6MPa
Input Power
220V/50HZ(110V/60HZ Alternative)
Machine Weight
500KG
Machine Dimension
L1220mm*W800mm*H1350mm
SMT Line
Placement Effect
Related Products
SMT Pick and Place Machine
NeoDen K1830
SMT Pick and Place Machine
NeoDen4
Reflow Oven
IN6
Our Service

Trade show and sales service

We will provide the sales service though e-mail and exhibitions to communicate face to face , let you feel the real competitive products.

After sales service

10 engineers powerful after-sales service team can respond customers queries and enquiries within 8 hours, professional solutions can be offered within 24 hours both workday and holidays.
Our Show
Workshop

Exhibition

Certification

Payment & Shipping
FAQ
Q1:Do you provide software updates?
For customers who buy our machine, we can offer free upgraded software for you.

Q2:Does our machine need air supply?
Yes, NeoDen9 needs air supply.

Q3:This is the first time I use this kind of machine, is it easy to operate?
We have English user manual and guide video to teach you how to use the machine. If you still have question, pls contact us by email/skype/phone etc for online service.

Q4:How about the warranty?
We have 2 years warranty for NeoDen4, K1830, NeoDen9, In6, IN12 and 1 year for all other models with lifetime after-sale support.

Q5:How can I buy machine from you?
(1)Consult us on line or by e-mail;
(2)Negotiate and confirm the final price, shipping, payment method and other terms;
(3)Send you the proforma invoice and confirm your order;
(4)Make the payment according to the method put on proforma invoice;
(5)We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping;
(6)Send your order via express or by air or by sea.
